The A-Multi range of aluminium noticeboards offers good quality 2 and 3-bay boards in a choice of Contemporary or Decorative styles at extremely competitive prices. Building on the tried and tested design of our ever-popular AF30 single-bay boards, as the name implies, the A-Multi combines 2 or more AF30 boards with a choice of posts, headers, sign panels and unglazed pinboards to create a wide spectrum of boards which are not only suitable for a host of everyday applications but will also stand the test of time.
Standard specification includes:
- Post and plank frame construction
- Slim, 30mm deep aluminium framed display cases
- Powder-coated finish
- Galvanised steel back panels with white lacquered finish for use with magnets
- 4mm, vandal-resistant, Plexichoc glazing
- Side-hinged doors which can be reversed for left or right-hand opening
- Waterproof elastomer seal

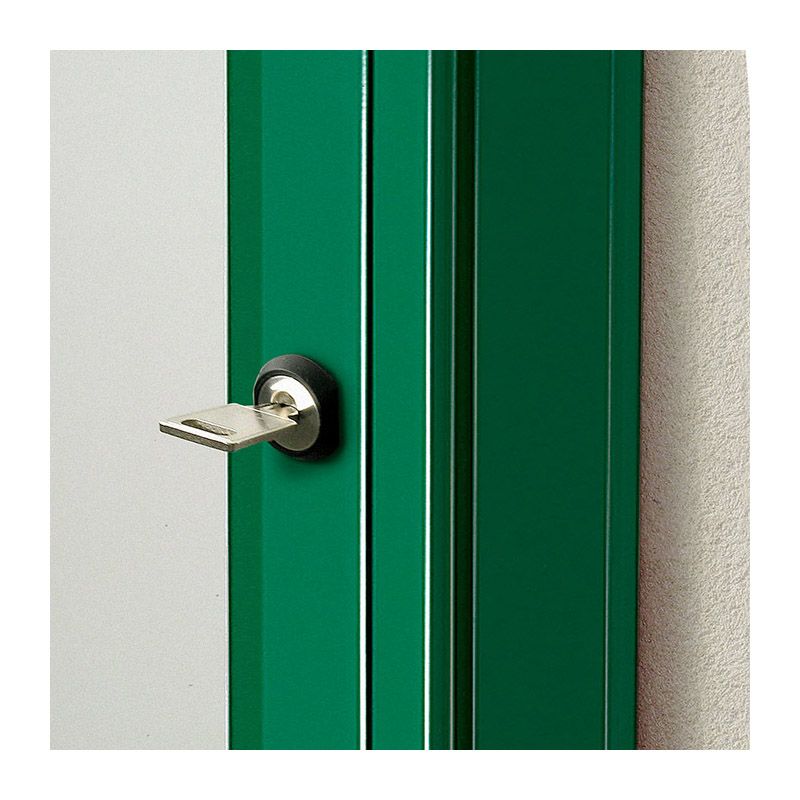

- Tamper-proof locks supplied with 2 keys per glazed bay
Available in 2 and 3-bay versions, single and double-sided* and in a variety of sizes and finishes each bay may be specified as a glazed display case, an unglazed pinboard, a grp-encapsulated graphic panel or a sign panel. Contemporary boards are mounted on plain round posts whilst the posts of Decorative boards have base embellishers, collars and finials. All are available with rectangular or bow-topped header panels.
• Some restrictions apply to double-sided boards. Please see details of individual boards
- Powder-coated finish in a choice of 6 colours
- Choice of alternative display panels in glazed bays including self-healing rubber pinboard, signwritten panels
- Choice of unglazed bays including self-healing pinboard, grp-encapsulated graphic panels and sign panels
- Commemorative, engraved aluminium dedication plate
|Available sizes||2-bay A2 – 3-bay A1|
|Configuration||Single and double-sided*, post-mounted. (*Some restrictions apply to double-sided boards – see details of individual models)|
|Frame and doors||76mm Ø posts, 165mm x 16mm horizontal frame rails, 30mm deep aluminium profiles for display cases|
|Glazing||4mm vandal-resistant Plexichoc|
|Display case back panels||Galvanised steel with white, lacquered finish|
|Display case interior surface||Magnetic|
|Hinges & locking||Integral extruded hinge which can be reversed to open to left or right|
|Weather resistance||Integral weatherseal|
||Self-healing rubber pinboard with powder-coated aluminium frame|
||Powder-coated aluminium with 30mm deep folded returns to all sides and welded corners and computer-cut vinyl lettering|
|Alternative finishes||Powder-coated in a choice of 6 standard colours|
|Display surface options (glazed bays)
||Self-healing rubber pinboard
Digitally printed graphic/map panel
|Display surface options (unglazed bays)
Self-healing rubber pinboard
GRP-encapsulated graphic/map panel
Sign Panel Options
||Computer-cut vinyl lettering in choice of fonts and colours|
||Single-colour logo in computer-cut vinyl*
Full-colour logo printed on vinyl*
* From customers own artwork
|Posts||Contemporary – 2 x plain 76mm Ø aluminium posts

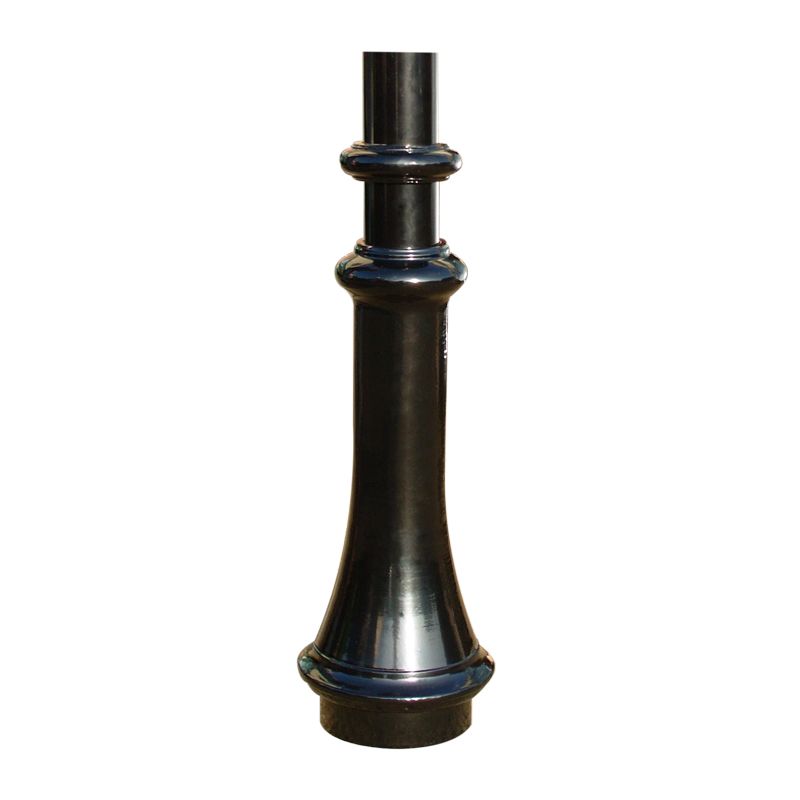

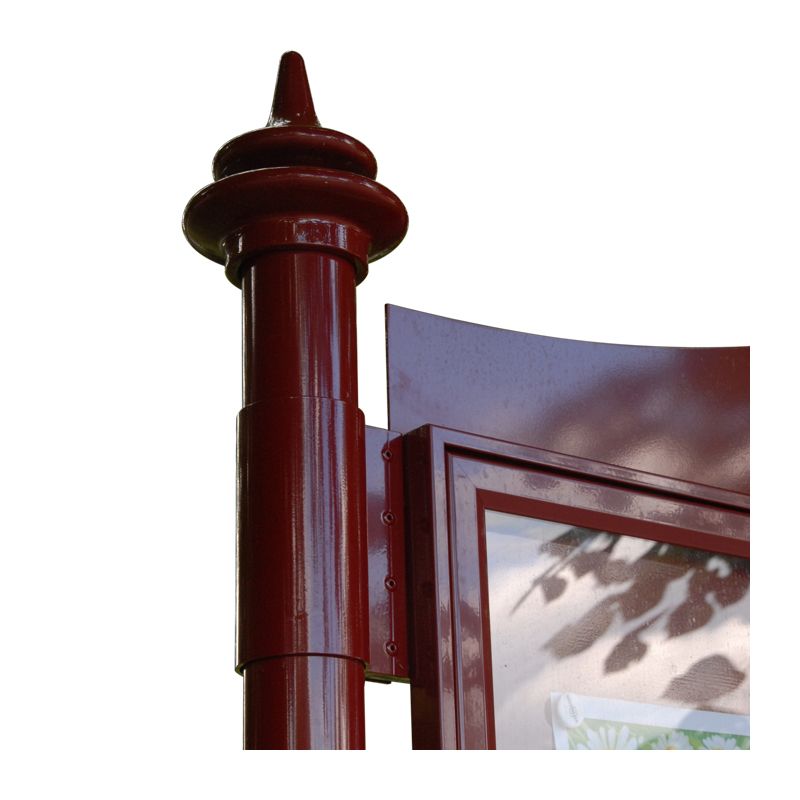

Decorative – 2 x 76mm Ø aluminium posts with base embellishers, decorative collars and finials
|Headers||Rectangular – 100mm high
Bow-topped – 200mm high
|Commemoration||Aluminium dedication plate, 75 x 30mm with up to 50 engraved characters|
Moss Green (RAL6005)
Gentian Blue (RAL5010)
Jet Black (RAL9005)
Orders may be placed directly online by completing details of the required specification, by phone on 01280 701093, by email to firstname.lastname@example.org or in writing to Greenbarnes Ltd, Unit 7 Barrington Court, Ward Road, Buckingham Road Industrial Estate, Brackley, Northamptonshire, NN13 7LE. If you need us to quote your order number in correspondence or on the invoice, please be sure to include this when ordering. All orders will be acknowledged on receipt by email or (where no email address is supplied) in writing and will include an estimated date for completion.
A-Multi noticeboards are manufactured to order. Lead time for production and delivery is usually 4-6 weeks but may vary according to workload. If your order is urgent or has a specific deadline, please contact us to discuss your requirements and we will do our utmost to accommodate you.
Local Authorities, churches, schools and registered charities: 30 days from date of invoice.
All other non-account customers: Payment in full is required with order.
Methods of payment: Credit card, electronic payment (BACS) or cheque.
BACS payments should be made to:
Sort code 23-05-80
Our preferred method of delivery will vary depending upon a number of factors including the weights of individual items in the consignment and the delivery address. The delivery method will be stated in our Order Confirmation. The usual methods of delivery for items up to 35kg and those exceeding 35kg are detailed below but please be aware that different arrangements may apply to remote areas and offshore islands. Exceptionally, if the size of an individual order or the mileage involved warrant it, we may opt to use a dedicated courier.
Orders where no single item exceeds 35kg are usually despatched via a UK nationwide courier on an overnight service, i.e. the consignment leaves us one day and you receive it on the next working day (Monday to Friday). As soon as your order is completed, we will contact you to arrange a suitable delivery day when someone will be available to receive it. All deliveries require a signature. Please note that this is NOT a timed delivery service and delivery could occur any time between 08:00 and 17:00 on the chosen day.
We appreciate that there is nothing more frustrating than having to set aside a whole day to receive a parcel, so if this is an issue, there are a number of possible work-arounds.
Firstly, it is generally possible to request a before 12:00 or before 10:30 delivery slot but this will attract an additional charge. If a timed delivery is essential please call us on 01280 701093 to place your order.
Secondly, it is sometimes possible for us to get the driver to contact you, say 30 minutes ahead of delivery, with an estimated arrival time. This is sometimes useful for deliveries to churches, village halls etc when you are close-by but not at the delivery location. It must be stressed however that there is no contractual obligation for the courier to do this and whether or not it happens will depend upon the goodwill of the driver concerned.
Thirdly, exceptionally and not recommended, it may be possible for you to nominate a “safe place” where the parcel can be left without being signed for but please be aware that in choosing this option, you assume full responsibility for the condition of the item as delivered as no claims for damage can be entertained for items received without a signature.
Orders where one or more items exceed 35kg are usually delivered by a specialist 2-man delivery team. As soon as your order is completed, we will contact you to let you know that it is being collected by our chosen specialist courier and shortly thereafter they will contact you directly to make final arrangements for the delivery.
What is the difference between Contemporary and Decorative boards?
It’s the posts!
Contemporary boards have plain, 76mm diameter posts whilst Decorative boards have posts with base embellishers, collars and finials.
What unglazed options are available?
A-Multi boards have 3 available options for unglazed boards.
Sign panels offer a powder-coated surface to take text (which is applied in computer-cut vinyl), logos etc. This option is ideal for churches, schools etc. which need to display relatively permanent information such as service times and contact numbers alongside frequently changed notices.
Self-healing pinboard allows the possibility to create an unglazed area for public notices alongside the glazed (restricted access) area, ideal for organisations such as parish councils, residents associations etc.
GRP encapsulations offer a tough, vandal-resistant method of displaying information in which a digital print is produced from artwork and then, as the name implies, is encapsulated in a layer of fibreglass resin to protect it from both the weather and the unwanted attention of vandals.
What is the expected lifespan of an aluminium noticeboard?
All our aluminium noticeboards are designed to give many years of troublefree service whilst requiring minimal care. Like any other product however, a little preventative maintenance such as regular lubrication of hinges and locks can help prolong the board’s useful life.
Which Display panel option should I choose?
For details of each option and its benefits simply choose that option from the dropdown and hover over the ? symbol that appears next to its price.
What is Plexichoc glazing?
Plexichoc ® is a transparent, UV-blocking glazing material with good shock resistance and meets ISO 179-1
Which way do the doors hinge?
All doors are easily reversible so can be hinged to left or right to suit site conditions.
- Single-bay boards are supplied hinged on the left, locking on the right by default
- 2-bay boards (AF30 only) – are hinged on the outer edges and lock at the centre by default
What is the lifespan of digital print?
Digital print has a minimum expected lifespan of 5 years. This doesn’t mean that it will be life-expired after 5 years but that we would not expect to see any noticeable deterioration in colour within a five year period. When used in a g.r.p. encapsulated panel it creates UV fade-resistant panel capable of withstanding external conditions for more than 10 years.
Can I make minor changes to contact details, service times etc on a sign panel?
Sign panels (as opposed to digital print and encapsulated panels) have lettering applied in computer-cut vinyl. Whilst this is designed to be weather-proof and permanent, there is a technique for removing it, if you know how! This means that making minor amendments, such as a change of contact number or service times is easily accomplished. We can supply new lettering to match the original for you to apply on site without the need for the board to be returned to us.
What artwork do I need to provide for logos or graphic panels?
For detailed information on acceptable file formats for logos and guidance on generating suitable artwork for graphic panels, maps etc., please click here for our separate guide on the subject.
Are all doors lockable?
Yes, all doors are lockable and each AF30 or AF58 board is supplied with 2 keys. Each A-Multi board is supplied with 2 keys per glazed bay.
What about installation?
Installation is designed to be as straightforward as possible and should be well within the capabilities of anyone competent at DIY. All A-Multi aluminium boards comprise of a kit of 2 posts and 2 horizontal rails with sockets at each end which fit over the posts plus individual boards or panels for each bay. These will have been pre-assembled at the factory before being disassembled for delivery. We recommend that posts are concreted into the ground to a minimum depth of 600mm. Once the frame is assembled and erected, the boards and/or display panels are mounted to the frame
The majority of our customers either undertake installation themselves or arrange for it to be carried out by a local contractor as this generally proves to be the most cost-effective method. We are however able to offer an installation service covering much of the UK if required. If this is of interest, please call us on 01280 701093 for details.
Can I get spare keys?
Yes, they are available from stock and can usually be posted out to you the same day.
Each A-Multi aluminium noticeboard comes with a 5-year guarantee on the quality of workmanship and materials used. We guarantee to the original purchaser that boards are free from defects in material and workmanship. “Defect” is defined as any imperfection which impairs the normal use of the board. This guarantee is expressly limited to the labour and material costs of repair within 5 years of the date of despatch and excludes the following:
1] Defects caused by the improper assembly, installation or disassembly.
2] Defects occurring after purchase as a result of lack of maintenance as prescribed in the relevant maintenance instructions, unauthorised product modification, intentional damage, misuse, abuse or negligence.
3] Cosmetic damage.
4] Labour costs incurred in returning the board to us.
Accuracy of colours
The examples shown on this website are depicted as accurately as the on-screen reproduction process will allow. However, you should be aware that the colour of the finished item may appear slightly different when viewed “in the flesh”.
Greenbarnes Ltd follows a policy of continual product development and improvement. Whilst every care has been taken in the preparation of this information, we reserve the right to change specifications and finishes at any time, without notice.
Related A-Multi boards
|Next size down||2-bay, 6 x A4, A-Multi Decorative aluminium noticeboard, square format, glazed, single or double-sided (Ref: AF30MD/D6A4)|

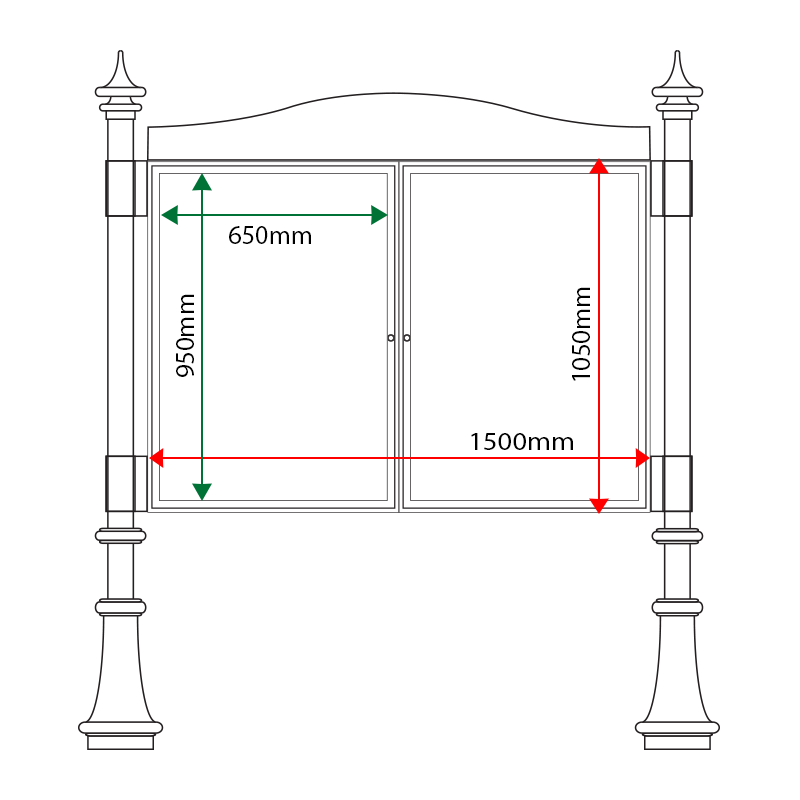

|This board||2-bay, A1, A-Multi Decorative aluminium noticeboard, portrait format, glazed, single or double-sided (Ref: AF30MD/DA1)|
|Next size up||N/a|
|One-bay glazed version||2-bay, A1, A-Multi Decorative aluminium noticeboard, portrait format, 1 bay glazed, single-sided (Ref: AF30MD/DA11G)|
|3-bay glazed version||3-bay, A1, A-Multi Decorative aluminium noticeboard, portrait format, glazed, single-sided (Ref: AF30MD/TA1)|
Equivalent boards in alternative materials and ranges
|In oak||2-bay, 9 x A4 oak noticeboard, portrait format, glazed, (Ref: D9A4/O)|
|In Man-made Timber (recycled plastic)||2-bay, 9 x A4 Man-made Timber noticeboard, portrait format, glazed, (Ref: PD9A4)|
|In aluminium||2-bay, A1, A-Max aluminium noticeboard, portrait format, glazed, (Ref: AXDA1)|
*Please note that colours shown are subject to the limitations of on-screen reproduction and should be used as a guide only. For further guidance, please ask.
